Roll-Up Bug Screen Doors

Our Screen-Pro® Roll-Up Bug Screens are an economical and ideal solution for screening out bugs, birds and other unwanted pests from your industrial facility.

They also allow fresh air into your building while acting as a physical barrier, deterring theft and trespassing.

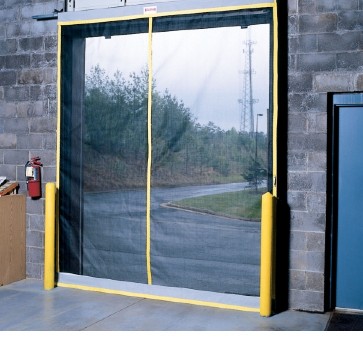

Loading Dock Bug Screen DoorRoll-Up Bug Screen

Typical applications for Screen-Pro® Bug Screens include:

✓ Loading docks
✓ Warehouses
✓ Distribution centers
✓ Food manufacturing facilities
✓ Among others



Features:

✓ Modular Design: Interchangeable panels allow for quick and easy repair of damaged panels. This eliminates the need for replacing the entire door, decreasing maintenance and repair costs over the life of the door.
✓ Extruded Aluminum Wind Bars: These bars are up to 50% stronger than other stiffeners in the industry. The high-strength stiffeners will combat high winds and negative pressure.
✓ Save-T® Breakaway Bars: Breakaway bars prevent the roll-up screen door from breaking if hit. The bottom bar releases in either direction and can be easily placed back into the track.
✓ Extruded Aluminum Guide Tracks: Track guides reduce friction and prevent black aluminum dust.
✓ Safety Options: We can include safety features such as photo-eyes and pneumatic reversing edges to ensure that the roll-up bug screen will not damage products or injure personnel that might be in the way of the closing.

Models:

Spring Loaded Manual Pull Down Bug Screen – Includes yellow pull down straps to bring the door up and down. The maximum door size for spring-loaded roll-up bug screens is 12' wide X 12' high.
Chain Hoist Bug Screen – Chain hoists are used to manually pull the bug screen door up and down, just like a traditional garage door.
✓ In-Tube Motorized Insect Screen – These roll-up bug screens are activated with an Up/Down constant pressure rocker switch. In-Tube Motors allow the bug screen to roll up at a rate of 12" per second. In-Tube Motors run on 110 volt, single-phase power, and are recommended for applications where the door will be used no more than 8 to 10 times per hour. The maximum door size for In-Tube Motor Roll-Up bug screens is 14' wide X 14' high.
✓ External Jackshaft Motorized Insect Screen – These external jackshaft motors pull the roll-up bug screen up at speeds of 12" per second. External jackshaft operators are used on openings that are used 10-15 cycles per hour.
✓ High-Cycle Motorized Insect Screen – For continuous duty applications, the this bug screen door uses a continuous-duty jackshaft motor.
✓ Swift Speed Motorized Insect Screen – This is the newest and fastest of the Screen-Pro® line. It moves at a rate of 30" per second for thousands less than a high-speed roll-up door.

Mounting Options:

- In-Jamb Mounting: These bug screen doors can be mounted within your doorjamb. This requires approximately 8.5" of headroom, 8.5" of jamb depth, and 5" on each side of jamb.
- Face of Wall Mounting: Screen-Pro® Bug Screen doors can also be mounted flush to the wall when there is no door present. If the bug screen is mounted outside, We recommend a protective covering to protect the barrel and motors from damage due to external elements and weather.
- Inside Stand-Off Mounting: The most common way to mount a Screen-Pro® Bug Screen is to mount it around your existing rolling steel or sectional door. This keeps the door mounted inside the building, protecting it from external elements.

At Loading Dock, Inc. we use the best manufacturers to make sure our customers needs and expectations are met and exceeded.
