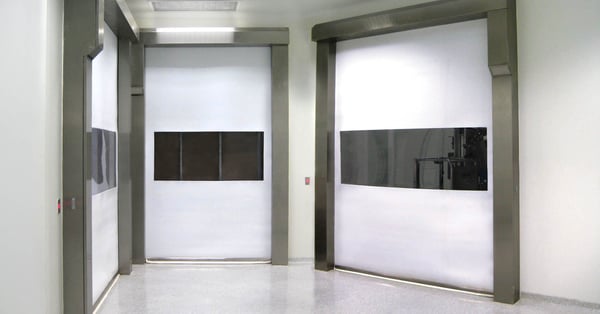

Rytec Clean Roll High Speed Fabric Door Pharma Seal 1


Clean-Roll® High-Performance Door By Rytec

Commercial & Industrial Overhead Doors


The Clean-Roll® door is an UL-listed high-speed fabric roll up door designed specifically to meet USDA, FDA, NSF, CFIA applications and ISO standards. Designed to allow complete wash-down with numerous sanitary features for applications requiring absolute cleanliness while providing low-maintenance and energy savings.


Clean-Roll
® Benefits:

✓ Sanitary Design:  Meets USDA hygienic standards for meat, poultry, dairy and seafood applications.
✓ Designed to be spray washed with rotating hinged drip guard for cleaning.
✓ Sloped gutter on bottom bar prevents dripping into pathway.
✓ USDA/FDA-compliant design virtually eliminates potential sites for germ manifestation.
✓ High-speed operation: up to 50 inches per second (helps maintain a controlled environment).
✓ Energy Efficient: High speed operation conserves energy and maintains constant climate control while helping to minimize infiltration of airborne pathogens.
✓  Takes a Hit: Clean-Set™ Break-Away™ bottom bar that resets in seconds.

Safety Features:

✓ Dual thru-beam photo eyes detect movement close to the door and will reverse to the open position provideing enhanced safety.
✓ A sensitivity-adjustable pneumatic reversing edge reverses door if anything comes in contact with it.
✓ Ry-Wi® Wireless System eliminates coil cords and provides two-way communication between control box and bottom bar.

Hands-Free Activation Options:

Clean Room Doors are designed to help provide the highest levels of purity and quality in your clean room to support regulatory compliance and product quality. Rytec's Clean-Room Doors offer touchless activation options that are not typically found on traditional doors.

The hands-free activation options that are available are:

1. Induction floor loop sensor: Located above or below the surface, these sense the presence of vehicles or equipment to automatically open doors.

2. Motion/presence detector: This device automatically opens doors when it detects movement or the presence of people and equipment. This option offers a very reliable performance in high-traffic areas.

3. Wave-to-open sensor: It automatically opens doors and helps improve traffic flow.

Hand Free Activation Option for Rytec Clean Doors

Multi-function device – Some devices, such as the LZR®-WIDESCAN, manage not only the desired activation area but also enable customized definition of detection area. This enables building managers to customize the detection zone adjacent to the doorway. This can be especially useful when untrained personnel must interact with the door.





Options:

✓ Blue or white USDA-compliant door panel
✓ Bolt-on stainless steel wind ribs
✓ Vulcanized vision window(s)
✓ Counterbalanced egress system
✓ Drip-Safe™ guard is an automatic pneumatic drip-catch tray that moves under the roll drum when the door opens. This enables fragile food cargoes to safely move through the doorway.
✓ It can be built up to 12’ wide x 12’ high.


Clean-Roll
® in Action Video:



Rytec Clean Roll High-Performance Video



Click here to read the Clean-Roll® High-Performance Door brochure.

Click here to learn more about other fabric high-speed doors and high-performance overhead doors.

Contact Us



We also install, repair and service loading dock equipment, industrial overhead-doors and commercial overhead-doors in New Jersey and New York City area.

We service Northern New Jersey (Bergen, Passaic, Hudson, Union, Essex, Morris, Hudson, Hunterdon, Middlesex, Mercer and Somerset county/counties), Manhattan, New York City, Brooklyn, Queens, Staten Island, Bronx, Westchester, and Rockland.



Roll-Up Clean® High-Performance Door Photos:
