Free-Standing Frame Loading Docks

There are times when cutting out a pit in a floor to install a recess or pit-mounted dock leveler is just not possible.  Our free standing frame loading docks provide an excellent way to solve your problem.

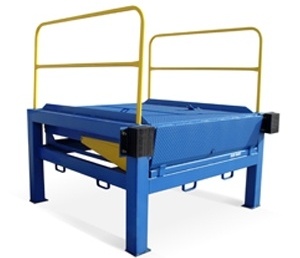

Blue Giant Dock Plate, Blue Giant Free Standing Dock LevelerFree-Standing Frame Loading Dock


Where Would You Use a Free Standing Dock Leveler?

In the majority of applications dock levelers are installed in a recessed pit. A free-standing frame assembly can support the installation of a dock leveler outside a building. Free-standing frames can also be implemented to avoid re-routing gas, electrical, and water lines, and other connections beneath a floor surface. Another reason to consider a dock leveler in a free-standing frame is the limited floor space at the loading dock area.


Additional Benefits of Free Standing Frame Loading Docks

- These fit all pit-style dock leveler dimensions
- Can be used with hydraulic, mechanical, and air-powered dock levelers
- Comes with guard rails and pre-installed bumpers

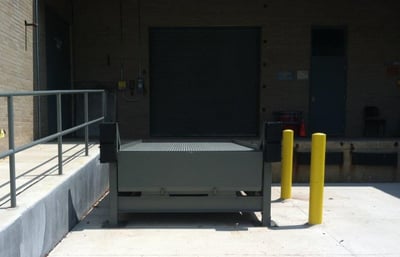

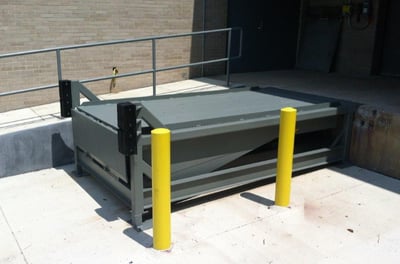

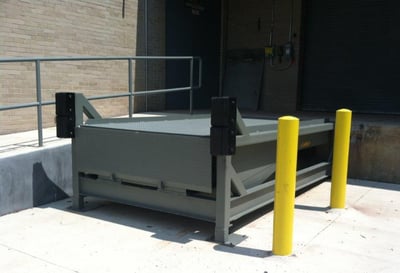

Loading Dock Equipment - Free Standing Pit Leveler with Dock Bumpers NJ NYC



Don't know where to start? We are here for you. Contact us.

Get an Estimate

Suggested Article:
Do I Need To Replace or Repair My Dock Leveler (Dock Plate)?


Recessed or Pit-Style Dock Levelers (Dock Plates):

Mechanical Dock Levelers (Dock Plates) by McGuire in NJ

Mechanical Dock Levelers,
Mechanical Dock Plate

1.1 Mechanical Dock Levelers
These are an economical solution to basic applications, while still providing strength and durability. These levelers use a pull chain activation to raise the deck. The operator then simply walks the deck back down to the bed of a trailer or to a stored position. Our mechanical dock levelers are equipped with a cam and roller counterbalance system, and a complete range auto-releasing hold-down mechanism for full float conditions.

1.2 Hydraulic Dock Levelers

It's the safest loading dock leveler. These levelers prevent free fall in a truck pull-out situation.

These dock levelers are push-button activated and have the highest capacity available. They utilize fully powered raise and lip extension functions with hydraulic cylinders and individual or multi-unit hydraulic pumps and motor stations.

Hydraulic Dock Levelers (Dock Plates) by McGuire in NYC

Hydraulic Dock Levelers,
Hydraulic Dock Plate

Air Powered Dock Levelers (Dock Plates) by McGuire in NJ

Air-Powered Dock Levelers,
Air-Powered Dock Plate

1.3 Air-Powered Dock Levelers
These levelers are an economical alternative to hydraulic levelers but are still operated with a push-button activation for ease of use. They have a mid-range capacity with an airbag or bellows system used to raise and lower the deck. These usually don't require any electricity in the dock pit.

1.4 Powered-Assisted Dock Levelers
These dock levelers are both reliable and flexible enough to keep up with the fast environment.  These rugged loading dock levelers combine the durability of a mechanical dock leveler and the high performance of the hydraulic operation while remaining functional even in the event of a power loss through a manual override device. It’s the perfect blend of power, performance, and peace of mind.

Powered-Assisted Dock Leveler (Dock Plate) by Serco in NYC

Powered-Assisted Dock Levelers,
Powered-Assisted Dock Plate

Edge of Dock Levelers by McGuire in NJ


Edge of Dock Levelers
EOD Levelers

1.5 Edge of Dock Levelers
EOD levelers are a great solution for lower budgets. They mount directly to the dock face and provide a recommended working range of +/-3" and a maximum operating range of +/-5" above or below the dock. The units are offered with either mechanical or hydraulic operation.

1.6 Vertical Dock Levelers
These vertical dock levelers are hydraulically operated and offer unmatched environmental control for customers with food storage or temperature-sensitive applications. By storing in the vertical position, the VSH Series allows the overhead door to form a perfect seal to the pit floor.

Vertical Dock Levelers (Dock Plates) by Serco in NJ


Vertical Dock Levelers,
Vertical Dock Plates
