    Recessed or Pit-Style Dock Levelers in New Jersey and New York

    [fa icon="clock-o"] Oct 22, 2016 9:35:00 AM [fa icon="user"] Antonio Cuchiara [fa icon="folder-open'] Mechanical Docklevelers, Full-Range Toe Guards, Interlock Features, Recessed or Pit-Style Dock Levelers, Air Bag, push-button hydraulic dock leveler, Auto Return, E-Stop, Mechanical Free Fall, Powered Dockleveler

    The recessed, or pit-style (1), dock leveler is the most common type of dock leveler because it has a greater operating range, load range, and life expectancy. Dock levelers are most often installed into pits that are formed into the concrete ahead of time. The pits are sized to meet the exact requirements of the dock levelers being used.

    Recessed or Pit-Style Dock Levelers, Curb Angle
    The standard range a recessed dock leveler can serve is 12 inches above and 12 inches below dock height. Special configurations of dock levelers can serve as much as 18 inches. above and below, depending on ramp length and pit depth. Recessed dock levelers are available with a spring-loaded mechanical activation system or powered with a push-button activation system.  Powered, push-button models are easier to operate and are activated by either an air or hydraulic system.  Although the initial cost of a mechanical dock leveler is less than a powered dock leveler, the long-term operating cost for a powered dock leveler can be lower.

    Mechanical Dock levelers

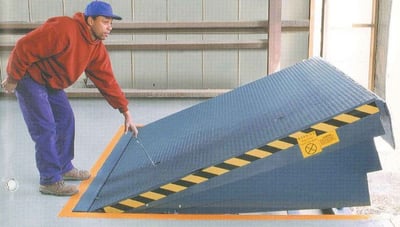

    Mechanical dock levelers are suitable for most applications. Mechanical dock levelers do not require  expensive electrical provisions and hookups. They will operate even during power failures. A mechanical, springloaded dock leveler (2) is upwardly biased with a spring and linkage system. It is held down by a releasable holdown device. To raise the ramp, pull the release chain connected to the holdown mechanism. Then, walk out on the ramp to force it down onto the truck bed. Once on the truck bed, the ratchet mechanism re-engages to prevent the ramp from rising again.

    Recessed or Pit-Style Dock Levelers, mechanical, springloaded dockleveler
    A mechanical dock leveler requires routine maintenance, lubrication and adjustments for reliable operation.

    Mechanical Free Fall

    Mechanical safety legs prevent the ramp from falling more than 4 in. below dock level. The legs must be manually retracted to permit servicing a trailer below this level. Although safety legs do improve safety, safety can be better addressed by using hydraulic docklevelers with hydraulic free fall protection.

    Full-Range Toe Guards

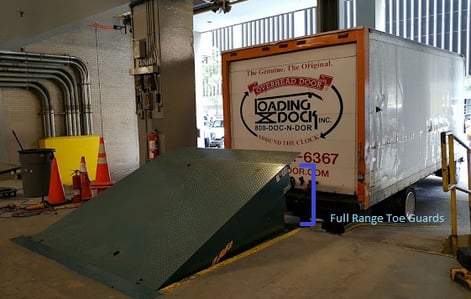

    recessed or pit style dock levelers, dock leveler full range toe guards
    Full-range toe guards close off the sides of the doc kleveler when the ramp is in the fully raised position. Full-range toe guards eliminate pinch points at the sides of the ramp during lowering. Full-range toe guards are standard on hydraulic and air powered docklevelers, while mechanical docklevelers include toe guards that cover the working range of the dockleveler with full-range toe guards as optional equipment.

    Powered Dock levelers

    Powered units are initially more expensive, but they offer many benefits. Powered dock levelers are easy to operate and do not require the operator to bend and pull a release chain to operate. Activation takes place through constant-pressure push button controls. Powered dock levelers are also safer than mechanical dock levelers due to the flexibility of the power source. Powered units also facilitate interlocking to other loading equipment and motorized overhead doors.

    Hydraulic

    recessed or pit style dock levelers, Hydraulic Dock Leveler

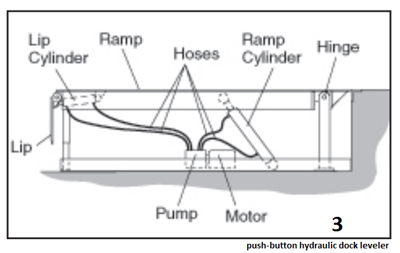

    A push-button hydraulic dock leveler (3) is powered by a hydraulic system that raises the ramp. This design is very reliable but requires more maintenance than an air-powered design.

    recessed or pit style dock levelers, A push-button hydraulic dock leveler (3)
    Air Bag

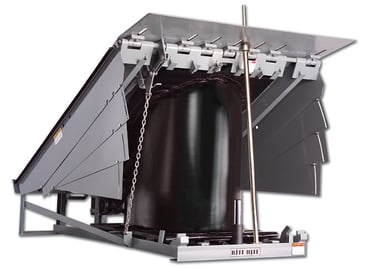

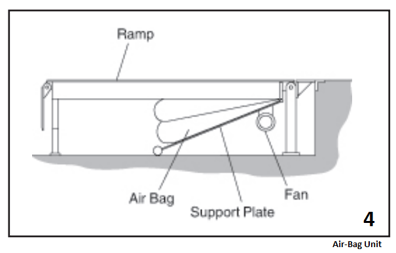

    Air-powered dock levelers (4) incorporate the use of a low-pressure, high-volume air system to raise and lower the platform. A single push button activates the air power system to raise the leveler and extend the lip. This simple, very reliable design requires only minimal maintenance.


    Schedule Estimate

    Safety Features

    Auto Return

    Auto Return is a safety feature on hydraulic units that automatically returns the dockleveler to its stored position when the truck leaves. This feature is important because powered docklevelers are downward biased. The energizing of the hydraulic system causes hydraulic docklevelers to move upward.

    NOTE: An air bag dock leveler moves up as the bags are inflated by the electric air pump. The dock leveler is moved downward by its weight and the force of gravity. A powered dock leveler in its raised position lowers unless it is supported by pressure, the truck bed or another device such as a maintenance stand. If a dock leveler does not
    have Auto Return, when the truck drives away, the dock leveler’s ramp and lip settle on the dock leveler’s bottom support stops. This causes a hazardous slope toward the door in the floor. If a dock leveler does have Auto Return, the dock leveler automatically returns to the stored position.

    E-Stop

    The emergency ramp stop is a safety feature that allows the operator to immediately stop the ramp at any time by pressing a button on the control panel. Hydraulic fail safe protection prevents the dock leveler
    from lowering to avoid the loading vehicle rolling off the dock. A velocity fuse on the base of the hydraulic cylinder locks the cylinder and limits the ramp in place when a loading vehicle is on the ramp and the truck pulls away.

    Interlock Features

    Powered dock levelers can be interlocked to other pieces of loading dock equipment such as truck restraints and overhead doors. Interlocking the loading dock equipment increases safety. Wheninterlocked to a vehicle restraint, the dock leveler can operate only if the trailer is restrained. If the trailer cannot be restrained, an override switch allows independent operation.

    Full-Range Toe Guards

    Full-range toe guards close off the side of dock levelers when the ramp is in the fully raised position. Full-range toe guards eliminate pinch points at the sides of the ramp during lowering.
